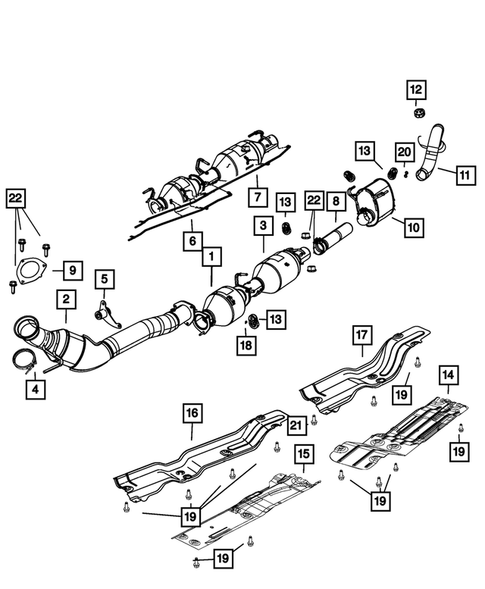

Exhaust System for 2009 Dodge Ram 3500
No.
Part # / Description / Price
Price
1
Catalytic Converter, Front 1
Mopar
Mopar Notes: Engines: 6.7L I6 CUMMINS TURBO DIESEL ENGINE.
Description: CATALYTIC
2
Exhaust Pipe And Converter Mopar
Mopar Notes: Engines: 6.7L I6 CUMMINS TURBO DIESEL ENGINE.
Description: To Manifold
3
Diesel Particulate Filter Assy 1 Mopar
Mopar Notes: Engines: 6.7L I6 CUMMINS TURBO DIESEL ENGINE.
Description: CATALYTIC
$4,225.00
$4,225.00
4
Exhaust Clamp Mopar
Mopar Notes: Engines: 6.7L I6 CUMMINS TURBO DIESEL ENGINE.
Description: Exhaust Pipe to Turbo Outlet
4
Exhaust Clamp Mopar
Mopar Notes: Engines: 6.7L I6 CUMMINS TURBO DIESEL ENGINE.
Description: Exhaust Pipe to Turbo Outlet
$35.65
$35.65
5
Exhaust Bracket Mopar
Mopar Notes: Engines: 6.7L I6 CUMMINS TURBO DIESEL ENGINE.
Description: Manifold Pipe
6
$204.00
7
$194.00
9
Exhaust Pipe Gasket Mopar
Mopar Notes: Engines: 6.7L I6 CUMMINS TURBO DIESEL ENGINE.
Description: GASKET- FLANGE 3 BOLT
$28.65
$28.65
10
$544.00
11
$564.00
13
Exhaust Support Isolator, Mounting Mopar
Mopar Notes: Engines: 5.9L I6 HO CUMMINS TD ENGINE. 6.7L I6 CUMMINS TURBO DIESEL ENGINE. All 5.7L V8 Engines.
Description: Rear Of Muffler & Extension Pipe To Frame Hanger
$24.00
$24.00
16
$68.10
18
Hex Flange Head Screw Mopar
Mopar Notes: Engines: 6.7L I6 CUMMINS TURBO DIESEL ENGINE.
Description: M5x0.8x12.0. Mounting DPF Routing Bracket and SCR Sensor. DPF Mounting Bracket
$11.65
$11.65
19
Hex Head Screw Tapping & Washer, Mounting Mopar
Mopar Description: .250-14X.750. Converter And Resonator Heat Shield To Floor
22
Hex Flange Lock Nut, Mounting Mopar
Mopar Notes: Engines: 6.7L I6 CUMMINS TURBO DIESEL ENGINE. All 5.7L V8 Engines. All Diesels Engines. Transmissions: 4-SPD. AUTOMATIC 48RE TRANSMISSION. 5-SPD AUTOMATIC 545RFE TRANSMISSION. 6-Spd Automatic 68RFE Transmission. All Manual Transmissions.
Description: M10x1.50. Front Differential Mount to Differential
$6.70
$6.70
1 This price excludes a refundable manufacturer's core charge. Add the part to your cart to see the core charge.

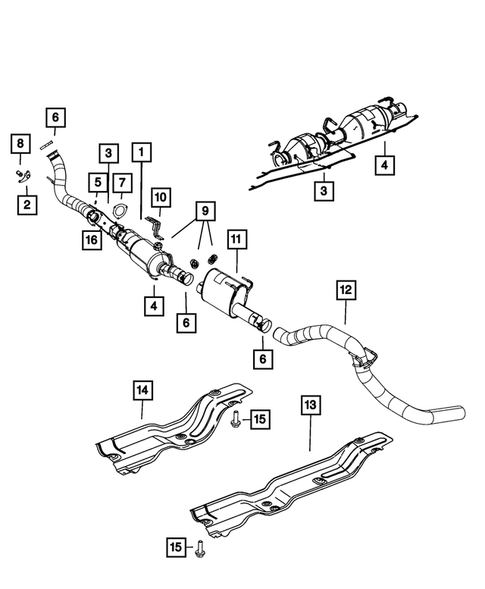

No.
Part # / Description / Price
Price
4
Particulate Filter Tube Mopar
Mopar Notes: Engines: 6.7L I6 CUMMINS TURBO DIESEL ENGINE.
Description: Outlet
$102.00
$102.00
5
Particulate Tube Holder Mopar
Mopar Notes: Engines: 6.7L I6 CUMMINS TURBO DIESEL ENGINE.
Description: Up to 10/03/11
9
Exhaust Support Isolator, Mounting Mopar
Mopar Description: Rear Of Muffler & Extension Pipe To Frame Hanger
$24.00
$24.00
13
$68.10
15
Hex Head Screw Tapping & Washer, Mounting Mopar
Mopar Description: .250-14X.750. Converter And Resonator Heat Shield To Floor
16
Hex Flange Lock Nut, Mounting Mopar
Mopar Notes: Engines: 6.7L I6 CUMMINS TURBO DIESEL ENGINE. All 5.7L V8 Engines. All Diesels Engines. Transmissions: 5-SPD AUTOMATIC 545RFE TRANSMISSION. 6-SPD AUTO AISIN AS68RC TRANSMISSION. All Manual Transmissions.
Description: M10x1.50. Front Differential Mount to Differential
$6.70
$6.70
1 This price excludes a refundable manufacturer's core charge. Add the part to your cart to see the core charge.

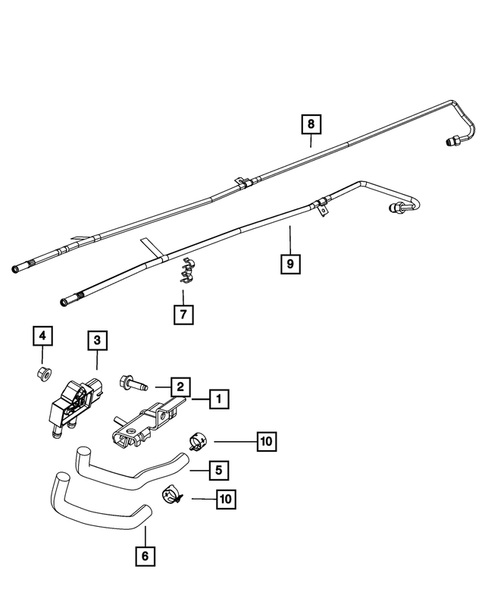

No.
Part # / Description / Price
Price
2
Hex Flange Head Bolt, Mounting Mopar
Mopar Notes: Engines: 6.7L I6 CUMMINS TURBO DIESEL ENGINE. Transmissions: 6-SPEED MANUAL G56 TRANSMISSION.
Description: M8x1.25x20.00. Oil Pan Upper Gallery Plug To Cylinder Block
$4.95
$4.95
3
Differential Pressure Sensor Mopar
Mopar Notes: Engines: 6.7L I6 CUMMINS TURBO DIESEL ENGINE. Transmissions: 6-Spd Automatic 68RFE Transmission. 6-SPEED MANUAL G56 TRANSMISSION.
Description: Differential pressure
$535.00
$535.00
5
Differential Pressure Hose Mopar
Mopar Notes: Engines: 6.7L I6 CUMMINS TURBO DIESEL ENGINE. Transmissions: 6-Spd Automatic 68RFE Transmission. 6-SPEED MANUAL G56 TRANSMISSION.
Description: Down stream
5
Differential Pressure Hose Mopar
Mopar Notes: Engines: 6.7L I6 CUMMINS TURBO DIESEL ENGINE. Transmissions: 6-SPEED MANUAL G56 TRANSMISSION.
Description: Down stream
5
Differential Pressure Hose Mopar
Mopar Notes: Engines: 6.7L I6 CUMMINS TURBO DIESEL ENGINE. Transmissions: 6-Spd Automatic 68RFE Transmission.
Description: Down stream
5
Differential Pressure Hose Mopar
Mopar Notes: Engines: 6.7L I6 CUMMINS TURBO DIESEL ENGINE. Transmissions: 6-SPEED MANUAL G56 TRANSMISSION.
Description: Down stream
5
Differential Pressure Hose Mopar
Mopar Notes: Engines: 6.7L I6 CUMMINS TURBO DIESEL ENGINE. Transmissions: 6-Spd Automatic 68RFE Transmission.
Description: Down stream
6
Differential Pressure Hose Mopar
Mopar Notes: Engines: 6.7L I6 CUMMINS TURBO DIESEL ENGINE. Transmissions: 6-SPEED MANUAL G56 TRANSMISSION.
Description: Up stream
6
Differential Pressure Hose Mopar
Mopar Notes: Engines: 6.7L I6 CUMMINS TURBO DIESEL ENGINE. Transmissions: 6-Spd Automatic 68RFE Transmission.
Description: Up stream
6
Differential Pressure Hose Mopar
Mopar Notes: Engines: 6.7L I6 CUMMINS TURBO DIESEL ENGINE. Transmissions: 6-Spd Automatic 68RFE Transmission.
Description: Up stream
6
Differential Pressure Hose Mopar
Mopar Notes: Engines: 6.7L I6 CUMMINS TURBO DIESEL ENGINE. Transmissions: 6-SPEED MANUAL G56 TRANSMISSION.
Description: Up stream
7
Particulate Tube Holder Mopar
Mopar Notes: Engines: 6.7L I6 CUMMINS TURBO DIESEL ENGINE.
Description: After 10/03/11
7
Particulate Tube Holder Mopar
Mopar Notes: Engines: 6.7L I6 CUMMINS TURBO DIESEL ENGINE.
Description: Up to 10/03/11
8
$194.00
9
$204.00
No.
Part # / Description / Price
Price
14
$68.10
16
Hex Head Screw Tapping & Washer, Mounting Mopar
Mopar Description: .250-14X.750. Converter And Resonator Heat Shield To Floor
No.
Part # / Description / Price
Price
5
$24.00
6
Exhaust Support Isolator, Mounting Mopar
Mopar Description: Rear Of Muffler & Extension Pipe To Frame Hanger
$24.00
$24.00
8
$4.40
