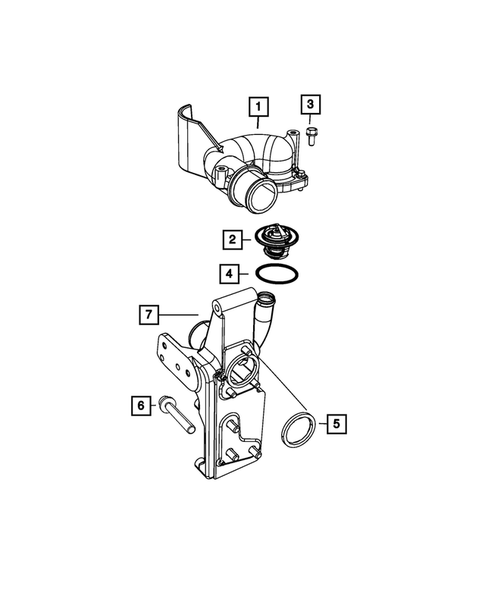

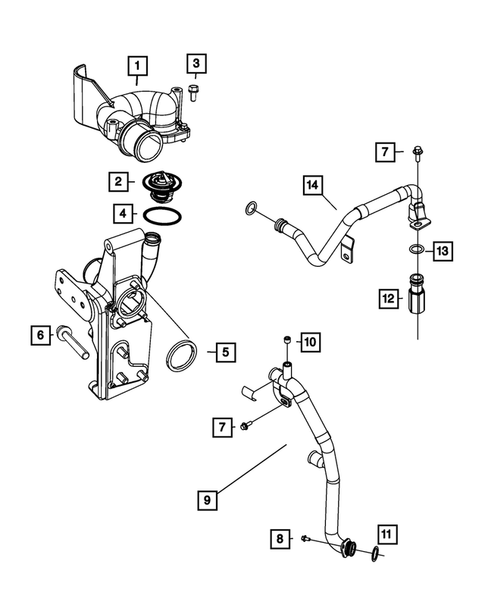

Water Pump and Related Parts for 2009 Dodge Ram 3500
No.
Part # / Description / Price
Price
1
Thermostat Housing
Mopar
Mopar Notes: Engines: 6.7L I6 CUMMINS TURBO DIESEL ENGINE. Transmissions: 6-Spd Automatic 68RFE Transmission. 6-SPEED MANUAL G56 TRANSMISSION.
$295.00
$295.00
2
Thermostat Mopar
Mopar Notes: Engines: 6.7L I6 CUMMINS TURBO DIESEL ENGINE. Transmissions: 6-Spd Automatic 68RFE Transmission. 6-SPEED MANUAL G56 TRANSMISSION.
Description: Includes Seal
3
Hex Flange Head Screw, Mounting, Bracket To Cylinder Head Mopar
Mopar Notes: Engines: 5.9L I6 HO CUMMINS TD ENGINE. 6.7L I6 CUMMINS TURBO DIESEL ENGINE. Transmissions: 4-SPD. AUTOMATIC 48RE TRANSMISSION. 6-Spd Automatic 68RFE Transmission. 6-SPEED MANUAL G56 TRANSMISSION.
Description: M14x2.00x80.00
$14.00
$14.00
4
Thermostat Seal Mopar
Mopar Notes: Engines: 5.9L I6 HO CUMMINS TD ENGINE. 6.7L I6 CUMMINS TURBO DIESEL ENGINE. Transmissions: 4-SPD. AUTOMATIC 48RE TRANSMISSION. 6-Spd Automatic 68RFE Transmission. 6-SPEED MANUAL G56 TRANSMISSION.
$22.00
$22.00
5
Seal Mopar
Mopar Notes: Engines: 5.9L I6 HO CUMMINS TD ENGINE. 6.7L I6 CUMMINS TURBO DIESEL ENGINE. Transmissions: 4-SPD. AUTOMATIC 48RE TRANSMISSION. 6-Spd Automatic 68RFE Transmission. 6-SPEED MANUAL G56 TRANSMISSION.
Description: Coolant Inlet Connection
$23.00
$23.00
6
Hex Head Bolt Mopar
Mopar Notes: Engines: 5.9L I6 HO CUMMINS TD ENGINE. 6.7L I6 CUMMINS TURBO DIESEL ENGINE. Transmissions: 4-SPD. AUTOMATIC 48RE TRANSMISSION. 6-Spd Automatic 68RFE Transmission. 6-SPEED MANUAL G56 TRANSMISSION.
Description: M12x1.75x25. Upper Outlet Bolts
7
Hex Flange Head Bolt, Mounting, Lower Left Mopar
Mopar Notes: Engines: 5.9L I6 HO CUMMINS TD ENGINE. 6.7L I6 CUMMINS TURBO DIESEL ENGINE. Transmissions: 4-SPD. AUTOMATIC 48RE TRANSMISSION. 6-Spd Automatic 68RFE Transmission. 6-SPEED MANUAL G56 TRANSMISSION.
Description: M8x1.25x20.00. Noise Panel To Cylinder Block
$7.00
$7.00
8
Hex Flange Head Bolt, Mounting Mopar
Mopar Notes: Engines: 5.9L I6 HO CUMMINS TD ENGINE. 6.7L I6 CUMMINS TURBO DIESEL ENGINE. Transmissions: 4-SPD. AUTOMATIC 48RE TRANSMISSION. 6-Spd Automatic 68RFE Transmission. 6-SPEED MANUAL G56 TRANSMISSION.
Description: Exhaust Manifold To Heat Shield
$22.00
$22.00
8
Hex Flange Head Bolt Mopar
Mopar Notes: Engines: 6.7L I6 CUMMINS TURBO DIESEL ENGINE. Transmissions: 6-Spd Automatic 68RFE Transmission. 6-SPEED MANUAL G56 TRANSMISSION.
9
Water Outlet Tube Mopar
Mopar Notes: Engines: 6.7L I6 CUMMINS TURBO DIESEL ENGINE. Transmissions: 6-Spd Automatic 68RFE Transmission. 6-SPEED MANUAL G56 TRANSMISSION.
10
Pipe Plug Mopar
Mopar Notes: Engines: 5.9L I6 HO CUMMINS TD ENGINE. 6.7L I6 CUMMINS TURBO DIESEL ENGINE. Transmissions: 4-SPD. AUTOMATIC 48RE TRANSMISSION. 6-Spd Automatic 68RFE Transmission. 6-SPEED MANUAL G56 TRANSMISSION.
Description: Right Side Of Cylinder Head Behind Thermostat Housing
$17.00
$17.00
11
O Ring Mopar
Mopar Notes: Engines: 6.7L I6 CUMMINS TURBO DIESEL ENGINE. Transmissions: 6-Spd Automatic 68RFE Transmission. 6-SPEED MANUAL G56 TRANSMISSION.
$16.00
$16.00
12
Egr Valve Cooler Kit Mopar
Mopar Notes: Engines: 6.7L I6 CUMMINS TURBO DIESEL ENGINE. Transmissions: 6-Spd Automatic 68RFE Transmission. 6-SPEED MANUAL G56 TRANSMISSION.
Description: Contains: (4) Connection Gaskets. Up to and Including Engine ID Number 57879028
$74.00
$74.00
13
Egr Valve Cooler Kit Mopar
Mopar Notes: Engines: 6.7L I6 CUMMINS TURBO DIESEL ENGINE. Transmissions: 6-Spd Automatic 68RFE Transmission. 6-SPEED MANUAL G56 TRANSMISSION.
Description: Contains: (4) Connection Gaskets. Up to and Including Engine ID Number 57879028
$45.00
$45.00
14
Egr Valve Cooler Kit Mopar
Mopar Notes: Engines: 6.7L I6 CUMMINS TURBO DIESEL ENGINE. Transmissions: 6-Spd Automatic 68RFE Transmission. 6-SPEED MANUAL G56 TRANSMISSION.
Description: Contains: (4) Connection Gaskets. Up to and Including Engine ID Number 57879028
$282.00
$282.00
No.
Part # / Description / Price
Price
1
Seal Mopar
Mopar Notes: Engines: 5.9L I6 HO CUMMINS TD ENGINE. 6.7L I6 CUMMINS TURBO DIESEL ENGINE. Transmissions: 4-SPD. AUTOMATIC 48RE TRANSMISSION. 6-Spd Automatic 68RFE Transmission. 6-SPEED MANUAL G56 TRANSMISSION.
Description: Coolant Inlet Connection
$23.00
$23.00
2
Hex Head Bolt Mopar
Mopar Notes: Engines: 5.9L I6 HO CUMMINS TD ENGINE. 6.7L I6 CUMMINS TURBO DIESEL ENGINE. Transmissions: 4-SPD. AUTOMATIC 48RE TRANSMISSION. 6-Spd Automatic 68RFE Transmission. 6-SPEED MANUAL G56 TRANSMISSION.
Description: M12x1.75x25. Upper Outlet Bolts
3
Water Inlet Connector Mopar
Mopar Notes: Engines: 6.7L I6 CUMMINS TURBO DIESEL ENGINE. Transmissions: 6-Spd Automatic 68RFE Transmission. 6-SPEED MANUAL G56 TRANSMISSION.
3
Water Inlet Connector Mopar
Mopar Notes: Engines: 5.9L I6 HO CUMMINS TD ENGINE. 6.7L I6 CUMMINS TURBO DIESEL ENGINE. Transmissions: 4-SPD. AUTOMATIC 48RE TRANSMISSION. 6-Spd Automatic 68RFE Transmission. 6-SPEED MANUAL G56 TRANSMISSION.
Description: Alternator support.
4
Roll Pin Mopar
Mopar Notes: Engines: 5.9L I6 HO CUMMINS TD ENGINE. 6.7L I6 CUMMINS TURBO DIESEL ENGINE. Transmissions: 4-SPD. AUTOMATIC 48RE TRANSMISSION. 6-Spd Automatic 68RFE Transmission. 6-SPEED MANUAL G56 TRANSMISSION.
Description: Water Inlet Connector to Engine
5
Hex Flange Nut, Mounting Mopar
Mopar Notes: Engines: 5.9L I6 HO CUMMINS TD ENGINE. 6.7L I6 CUMMINS TURBO DIESEL ENGINE. Transmissions: 4-SPD. AUTOMATIC 48RE TRANSMISSION. 6-Spd Automatic 68RFE Transmission. 6-SPEED MANUAL G56 TRANSMISSION.
Description: M6x1.00. Engine Oil Level Indicator Tube
$8.00
$8.00
6
Connector Mopar
Mopar Notes: Engines: 6.7L I6 CUMMINS TURBO DIESEL ENGINE. Transmissions: 6-Spd Automatic 68RFE Transmission. 6-SPEED MANUAL G56 TRANSMISSION.
7
Water Inlet Tube Mopar
Mopar Notes: Engines: 6.7L I6 CUMMINS TURBO DIESEL ENGINE. Transmissions: 6-Spd Automatic 68RFE Transmission. 6-SPEED MANUAL G56 TRANSMISSION.
8
Coolant Hose Elbow Mopar
Mopar Notes: Engines: 6.7L I6 CUMMINS TURBO DIESEL ENGINE. Transmissions: 6-Spd Automatic 68RFE Transmission. 6-SPEED MANUAL G56 TRANSMISSION.
$113.00
$113.00
9
Hose Mopar
Mopar Notes: Engines: 6.7L I6 CUMMINS TURBO DIESEL ENGINE. Transmissions: 6-Spd Automatic 68RFE Transmission. 6-SPEED MANUAL G56 TRANSMISSION.
$65.00
$65.00
10
Pipe Plug Mopar
Mopar Notes: Engines: 5.9L I6 HO CUMMINS TD ENGINE. 6.7L I6 CUMMINS TURBO DIESEL ENGINE. Transmissions: 4-SPD. AUTOMATIC 48RE TRANSMISSION. 6-Spd Automatic 68RFE Transmission. 6-SPEED MANUAL G56 TRANSMISSION.
Description: Right Side Of Cylinder Head Behind Thermostat Housing
$17.00
$17.00
11
Coolant Hose Mopar
Mopar Notes: Engines: 6.7L I6 CUMMINS TURBO DIESEL ENGINE. Transmissions: 6-Spd Automatic 68RFE Transmission. 6-SPEED MANUAL G56 TRANSMISSION.
$49.00
$49.00
12
Water Outlet Tube Mopar
Mopar Notes: Engines: 6.7L I6 CUMMINS TURBO DIESEL ENGINE. Transmissions: 6-Spd Automatic 68RFE Transmission. 6-SPEED MANUAL G56 TRANSMISSION.
Description: WATER OUTLET
13
Hose Clamp Mopar
Mopar Notes: Engines: 6.7L I6 CUMMINS TURBO DIESEL ENGINE. Transmissions: 6-Spd Automatic 68RFE Transmission. 6-SPEED MANUAL G56 TRANSMISSION.
14
Hose Clamp Mopar
Mopar Notes: Engines: 6.7L I6 CUMMINS TURBO DIESEL ENGINE. Transmissions: 6-Spd Automatic 68RFE Transmission. 6-SPEED MANUAL G56 TRANSMISSION.
No.
Part # / Description / Price
Price
1
Thermostat Housing Mopar
Mopar Notes: Engines: 6.7L I6 CUMMINS TURBO DIESEL ENGINE. Transmissions: 6-SPD AUTO AISIN AS68RC TRANSMISSION. 6-SPEED MANUAL G56 TRANSMISSION.
$295.00
$295.00
2
Thermostat Mopar
Mopar Notes: Engines: 6.7L I6 CUMMINS TURBO DIESEL ENGINE. Transmissions: 6-SPD AUTO AISIN AS68RC TRANSMISSION. 6-SPEED MANUAL G56 TRANSMISSION.
Description: Includes Seal
3
Hex Flange Head Screw, Mounting, Bracket To Cylinder Head Mopar
Mopar Notes: Engines: 6.7L I6 CUMMINS TURBO DIESEL ENGINE. Transmissions: 6-SPD AUTO AISIN AS68RC TRANSMISSION. 6-SPEED MANUAL G56 TRANSMISSION.
Description: M14x2.00x80.00
$14.00
$14.00
4
Thermostat Seal Mopar
Mopar Notes: Engines: 6.7L I6 CUMMINS TURBO DIESEL ENGINE. Transmissions: 6-SPD AUTO AISIN AS68RC TRANSMISSION. 6-SPEED MANUAL G56 TRANSMISSION.
$22.00
$22.00
5
Seal Mopar
Mopar Notes: Engines: 6.7L I6 CUMMINS TURBO DIESEL ENGINE. Transmissions: 6-SPD AUTO AISIN AS68RC TRANSMISSION. 6-SPEED MANUAL G56 TRANSMISSION.
Description: Coolant Inlet Connection
$23.00
$23.00
6
Hex Head Bolt Mopar
Mopar Notes: Engines: 6.7L I6 CUMMINS TURBO DIESEL ENGINE. Transmissions: 6-SPD AUTO AISIN AS68RC TRANSMISSION. 6-SPEED MANUAL G56 TRANSMISSION.
Description: M12x1.75x25. Upper Outlet Bolts
7
Water Inlet Connector Mopar
Mopar Notes: Engines: 6.7L I6 CUMMINS TURBO DIESEL ENGINE. Transmissions: 6-SPD AUTO AISIN AS68RC TRANSMISSION. 6-SPEED MANUAL G56 TRANSMISSION.
Description: WATER INLET
No.
Part # / Description / Price
Price
1

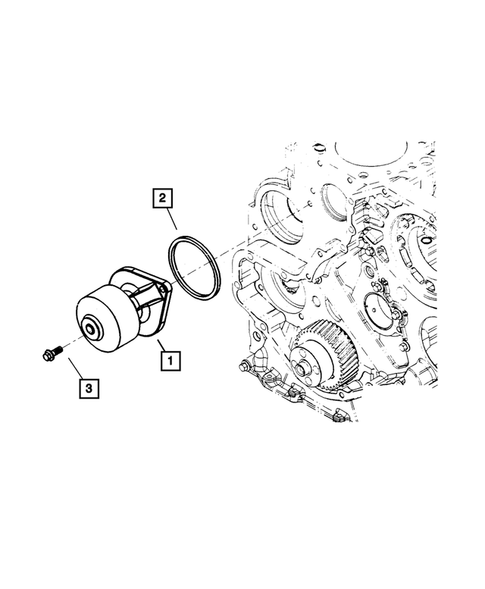

Water Pump Mopar
Mopar Notes: Engines: 5.9L I6 HO CUMMINS TD ENGINE. 6.7L I6 CUMMINS TURBO DIESEL ENGINE. Transmissions: 4-SPD. AUTOMATIC 48RE TRANSMISSION. 6-Spd Automatic 68RFE Transmission. 6-SPEED MANUAL G56 TRANSMISSION.
Description: Includes silicone seal
$411.00
$411.00
2
Water Pump To Front Cover Seal Mopar
Mopar Notes: Engines: 5.9L I6 HO CUMMINS TD ENGINE. 6.7L I6 CUMMINS TURBO DIESEL ENGINE. Transmissions: 4-SPD. AUTOMATIC 48RE TRANSMISSION. 6-Spd Automatic 68RFE Transmission. 6-SPEED MANUAL G56 TRANSMISSION.
$36.00
$36.00
No.
Part # / Description / Price
Price
1
Water Pump Mopar
Mopar Notes: Engines: 6.7L I6 CUMMINS TURBO DIESEL ENGINE. Transmissions: 6-SPD AUTO AISIN AS68RC TRANSMISSION. 6-SPEED MANUAL G56 TRANSMISSION.
Description: Includes silicone seal
$411.00
$411.00
2
Water Pump To Front Cover Seal Mopar
Mopar Notes: Engines: 6.7L I6 CUMMINS TURBO DIESEL ENGINE. Transmissions: 6-SPD AUTO AISIN AS68RC TRANSMISSION. 6-SPEED MANUAL G56 TRANSMISSION.
$36.00
$36.00
