Home 2020 Ram 1500 Classic Warlock 3.6L V6 - Flex Timing Belt/Chain and Cover and Balance Shaft

Timing Belt/Chain and Cover and Balance Shaft for 2020 Ram 1500 Classic

Vehicle

2020 Ram 1500 Classic

Change Vehicle

Categories

Engine
Engine
Browse Categories

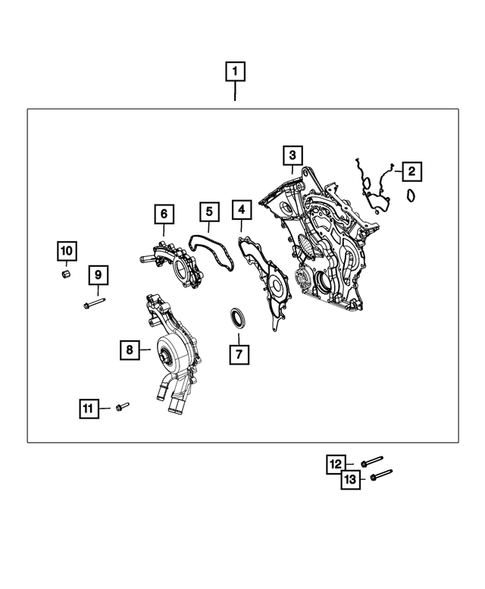

Timing Belt/Chain and Cover and Balance Shaft for 2020 Ram 1500 Classic #0 Timing Belt/Chain and Cover and Balance Shaft for 2020 Ram 1500 Classic #1
Timing Belt/Chain and Cover and Balance Shaft for 2020 Ram 1500 Classic #0
1
1
10
10
11
11
12
14
14
16
17
18
19
2
2
2
2
20
21
3
3
4
5
5
6
7
7
7
8
8
8
8
9
9
No.
Part # / Description / Price
Price
1
5184150AF - Engine: Oil Control Valve for Mopar Image
Oil Control Valve
5184150AF
Mopar Mopar
Notes: Engines: 3.6L V6 FFV 24V VVT Engine.
$138.00
$138.00
2
5184369AH - Engine: Camshaft Phaser, Exhaust for Mopar Image
Camshaft Phaser, Exhaust
5184369AH
Mopar Mopar
Notes: Engines: 3.6L V6 FFV 24V VVT Engine.
$192.00
$192.00
2
5184370AI - Engine: Camshaft Phaser, Intake for Mopar Image
Camshaft Phaser, Intake
5184370AI
Mopar Mopar
Notes: Engines: 3.6L V6 FFV 24V VVT Engine.
$186.00
$186.00
3
5047790AB - Engine: Tensioner Arm, Right Side for Mopar Image
Tensioner Arm, Right Side
05047790AB
Mopar Mopar
Notes: Engines: 3.6L V6 FFV 24V VVT Engine.
Description: Right Side. Secondary.
$35.70
$35.70
3
5047792AB - Engine: Tensioner Arm, Left Side for Mopar Image
Tensioner Arm, Left Side
05047792AB
Mopar Mopar
Notes: Engines: 3.6L V6 FFV 24V VVT Engine.
Description: Left Side. Secondary.
$38.75
$38.75
4
6509253AA - Engine: Torx Head Bolt, Mounting for Mopar Image
Torx Head Bolt, Mounting
6509253AA
Mopar Mopar
Notes: Engines: 3.6L V6 FFV 24V VVT Engine.
Description: M8X1.25X75.00. Idler Shaft To Cylinder Block
$6.45
$6.45
5
5184352AF - Engine: Timing Secondary Chain for Mopar Image
Timing Secondary Chain
5184352AF
Mopar Mopar
Notes: Engines: 3.6L V6 FFV 24V VVT Engine.
$166.00
$166.00
6
6509353AA - Engine: Torx Head Bolt, Mounting for Mopar Image
Torx Head Bolt, Mounting, Right Side
6509353AA
Mopar Mopar
Notes: Engines: 3.6L V6 FFV 24V VVT Engine.
Description: M6X1.00X15.00. Secondary. Timing Chain Guide
$2.95
$2.95
7
5047794AA - Engine: Timing Chain Guide, Secondary, Left Side for Mopar Image
Timing Chain Guide, Secondary, Left Side
5047794AA
Mopar Mopar
Notes: Engines: 3.6L V6 FFV 24V VVT Engine.
Description: If A Short Block Engine Has Been Installed,The Timing Chain Guide Pins Are NOT Installed In The New Cylinder Block. Pin Kit 68146903AB Must Be Installed Before Timing System Can Be Installed. Before Timing System Can Be Installed.
$56.30
$56.30
7
5047791AB - Engine: Timing Chain Guide, Secondary, Right Side for Mopar Image
Timing Chain Guide, Secondary, Right Side
05047791AB
Mopar Mopar
Notes: Engines: 3.6L V6 FFV 24V VVT Engine.
Description: If A Short Block Engine Has Been Installed,The Timing Chain Guide Pins Are NOT Installed In The New Cylinder Block. Pin Kit 68146903AB Must Be Installed Before Timing System Can Be Installed. Before Timing System Can Be Installed.
$34.80
$34.80
7
5184392AD - Engine: Timing Chain Guide, Primary for Mopar Image
Timing Chain Guide, Primary
5184392AD
Mopar Mopar
Notes: Engines: 3.6L V6 FFV 24V VVT Engine.
Description: If A Short Block Engine Has Been Installed,The Timing Chain Guide Pins Are NOT Installed In The New Cylinder Block. Pin Kit 68146903AB Must Be Installed Before Timing System Can Be Installed. Before Timing System Can Be Installed.
$12.35
$12.35
8
6509320AA - Engine: Torx Head Bolt, Mounting Left Side for Mopar Image
Torx Head Bolt, Mounting, Secondary
6509320AA
Mopar Mopar
Notes: Engines: 3.6L V6 FFV 24V VVT Engine.
Description: M6X1.00X30.00. Left Side. Timing Chain Guide
$3.20
$3.20
9
5047886AB - Engine: Chain Tensioner, Right Side for Mopar Image
Chain Tensioner, Right Side
05047886AB
Mopar Mopar
Notes: Engines: 3.6L V6 FFV 24V VVT Engine.
Description: Secondary
$243.00
$243.00
9
5047885AB - Engine: Chain Tensioner, Left Side for Mopar Image
Chain Tensioner, Left Side
05047885AB
Mopar Mopar
Notes: Engines: 3.6L V6 FFV 24V VVT Engine.
Description: Secondary
$296.00
$296.00
10
5184357AE - Engine: Intermediate Gear for Mopar Image
Intermediate Gear
5184357AE
Mopar Mopar
Notes: Engines: 3.6L V6 FFV 24V VVT Engine.
$106.00
$106.00
11
5184356AE - Engine: Crankshaft Gear for Mopar Image
Crankshaft Gear
5184356AE
Mopar Mopar
Notes: Engines: 3.6L V6 FFV 24V VVT Engine.
$70.10
$70.10
12
5184359AB - Engine: Idler Shaft for Mopar Image
Idler Shaft, Mounting Right Side
5184359AB
Mopar Mopar
Notes: Engines: 3.6L V6 FFV 24V VVT Engine.
Description: Idler Sprocket
$40.10
$40.10
14
5184355AF - Engine: Timing Primary Chain for Mopar Image
Timing Primary Chain
5184355AF
Mopar Mopar
Notes: Engines: 3.6L V6 FFV 24V VVT Engine.
$50.85
$50.85
16
6508448AA - Engine: Hex Head Screw And Washer, Mounting for Mopar Image
Hex Head Bolt And Coned Washer, Mounting
6508448AA
Mopar Mopar
Notes: Engines: 3.6L V6 FFV 24V VVT Engine.
Description: M6X1.00X25.00. Oil Pump To Cylinder Block
$6.85
$6.85
16
6102012 - Engine: Hex Head Screw And Washer, Mounting for Mopar Image
Hex Head Bolt And Coned Washer, Mounting
6102012
Mopar Mopar
Notes: Engines: 3.6L V6 FFV 24V VVT Engine.
Description: M6X1.00X25.00. Oil Pump To Cylinder Block
View Details
View Details
17
5184093AE - Engine: Chain Tensioner, Oil Pump for Mopar Image
Chain Tensioner, Oil Pump
5184093AE
Mopar Mopar
Notes: Engines: 3.6L V6 FFV 24V VVT Engine.
Description: Oil Pump.
$30.75
$30.75
18
68312674AA - Engine: Oil Pump Drive Chain for Mopar Image
Oil Pump Drive Chain
68312674AA
Mopar Mopar
Notes: Engines: 3.6L V6 FFV 24V VVT Engine.
Description: Oil Pump
$89.10
$89.10
19
5184273AD - Engine: Oil Pump Drive Gear for Mopar Image
Oil Pump Drive Gear
5184273AD
Mopar Mopar
Notes: Engines: 3.6L V6 FFV 24V VVT Engine.
View Details
View Details
20
5047891AA - Engine: Chain Tensioner for Mopar Image
Chain Tensioner
5047891AA
Mopar Mopar
Notes: Engines: 3.6L V6 FFV 24V VVT Engine.
Description: Primary
$242.00
$242.00
21
6104128AA - Engine: Recessed Torx Head Bolt And Washer, Mounting for Mopar Image
Recessed Torx Head Bolt And Washer, Mounting
6104128AA
Mopar Mopar
Notes: Engines: 3.6L V6 FFV 24V VVT Engine.
Description: M8X1.25X16.00. Oil Pump Drive Gear
$4.50
$4.50
No.
Part # / Description / Price
Price
1
4893188AG - Engine: Chain Case Cover for Mopar Image
Chain Case Cover
04893188AG
Mopar Mopar
Notes: Engines: 3.6L V6 FFV 24V VVT Engine.
Description: CHAIN CASE
$1,350.00
$1,350.00
2
68228480AA - Engine: Chain Case Cover Gasket Kit for Mopar Image
Chain Case Cover Gasket Kit
68228480AA
Mopar Mopar
Notes: Engines: 3.6L V6 FFV 24V VVT Engine.
Description: NOT Included With Long Block Engine Install Kit. Contains 3 Seals Including Round Seal
$32.45
$32.45
4
68087340AA - Engine: Water Pump Gasket for Mopar Image
Water Pump Gasket
68087340AA
Mopar Mopar
Notes: Engines: 3.6L V6 FFV 24V VVT Engine.
Description: NOT Included With Long Block Engine Install Kit
$32.95
$32.95
5
5184454AE - Engine: Crossover Water Outlet Gasket for Mopar Image
Crossover Water Outlet Gasket
5184454AE
Mopar Mopar
Notes: Engines: 3.6L V6 FFV 24V VVT Engine.
Description: NOT Included With Long Block Engine Install Kit
View Details
View Details
6
5184653AF - Engine: Coolant Crossover for Mopar Image
Coolant Crossover
5184653AF
Mopar Mopar
Notes: Engines: 3.6L V6 FFV 24V VVT Engine.
Description: Includes Gasket.
View Details
View Details
7
68079589AA - Engine: Crankshaft Oil Seal for Mopar Image
Crankshaft Oil Seal
68079589AA
Mopar Mopar
Notes: Engines: 3.6L V6 FFV 24V VVT Engine.
Description: Front
$28.65
$28.65
8
5184498AN - Engine: Water Pump for Mopar Image
Water Pump
05184498AN
Mopar Mopar
Notes: Engines: 3.6L V6 FFV 24V VVT Engine.
Description: New Part For Core Return
View Details
View Details
9
6102429AA - Engine: Hex Head Bolt And Coned Washer, Mounting for mopar Image
Hex Head Bolt And Coned Washer, Mounting
6102429AA
mopar mopar
Notes: Engines: 3.6L V6 FFV 24V VVT Engine.
Description: M6X1.00X25.00. Coolant Crossover To Timing Case Cover
$7.00
$7.00
10
6508675AA - Engine: Push On Nut, Mounting for Mopar Image
Push On Nut, Mounting
6508675AA
Mopar Mopar
Notes: Engines: 3.6L V6 FFV 24V VVT Engine.
Description: M6. Timing Case Cover
$3.65
$3.65
11
6509392AA - Engine: Hex Flange Head Bolt, Mounting for Mopar Image
Hex Flange Head Bolt, Mounting
6509392AA
Mopar Mopar
Notes: Engines: 3.6L V6 FFV 24V VVT Engine.
Description: M6X1.00X48.00. Coolant Crossover To Timing Case Cover
$13.35
$13.35
12
6104221AA - Engine: Hex Flange Head Bolt, Mounting for Mopar Image
Hex Flange Head Bolt, Mounting
6104221AA
Mopar Mopar
Notes: Engines: 3.6L V6 FFV 24V VVT Engine. 5.7L V8 HEMI MDS VVT Engine.
Description: M10X1.50X55.00. Tensioner To Timing Case Cover
$15.00
$15.00
13
6105053AA - Engine: Hex Head Bolt, Mounting for Mopar Image
Hex Head Bolt, Mounting
6105053AA
Mopar Mopar
Notes: Engines: 3.6L V6 FFV 24V VVT Engine.
Description: M8X1.25X45.00. Timing Case Cover To Right Side Cylinder Head
$14.20
$14.20
