Gear Train for 2009 Dodge Ram 2500

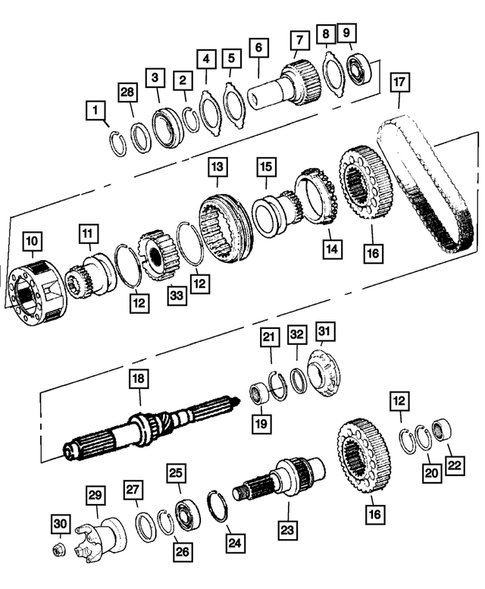

Gear Train for 2009 Dodge Ram 2500 #0

1

10

11

12

12

12

13

14

16

16

17

18

19

2

20

21

22

23

24

25

26

27

28

29

3

30

31

32

33

4

5

6

7

8

No.

Part # / Description / Price

Price

1

5086314AA - NVG273; Transfer Case: Snap Ring for Mopar Image

Snap Ring

Mopar

Mopar

Notes: Engines: 5.7L HEMI VCT Engine. Transmissions: 4-SPD. AUTOMATIC 48RE TRANSMISSION. 5-SPD AUTOMATIC 545RFE TRANSMISSION. 6-Spd Automatic 68RFE Transmission. 6-SPEED MANUAL G56 TRANSMISSION. All Manual Transmissions.

Description: Front Bearing To Shaft

$11.30

$11.30

2

4338910 - NVG273; Transfer Case: Snap Ring for Mopar Image

Snap Ring

Mopar

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 48RE TRANSMISSION. 5-SPD AUTOMATIC 545RFE TRANSMISSION. 6-Spd Automatic 68RFE Transmission. 6-SPEED MANUAL G56 TRANSMISSION. All Manual Transmissions.

Description: W/[52105024AC]

$7.20

$7.20

3

5103488AA - NVG273; Transfer Case: Input Gear Bearing for Mopar Image

Input Gear Bearing

Mopar

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 48RE TRANSMISSION. 5-SPD AUTOMATIC 545RFE TRANSMISSION. 6-Spd Automatic 68RFE Transmission. 6-SPEED MANUAL G56 TRANSMISSION. All Manual Transmissions.

Description: [Front Input]

4

5019579AA - NVG273; Transfer Case: Plate for Mopar Image

Ring

Mopar

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 48RE TRANSMISSION. 5-SPD AUTOMATIC 545RFE TRANSMISSION. 6-Spd Automatic 68RFE Transmission. 6-SPEED MANUAL G56 TRANSMISSION. All Manual Transmissions.

Description: W/[52105024AC]

$23.50

$23.50

5

5086313AA - NVG273; Transfer Case: Planetary Carrier Thrust Washer for Mopar Image

Planetary Carrier Thrust Washer

Mopar

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 48RE TRANSMISSION. 5-SPD AUTOMATIC 545RFE TRANSMISSION. 6-Spd Automatic 68RFE Transmission. 6-SPEED MANUAL G56 TRANSMISSION. All Manual Transmissions.

6

5086311AA - NVG273; Transfer Case: Input Gear for Mopar Image

Input Gear

Mopar

Mopar

Notes: Transmissions: 6-Spd Automatic 68RFE Transmission. 6-SPEED MANUAL G56 TRANSMISSION. All Manual Transmissions.

Description: [DBB=DG3] With Stamping # [52105649AF]

6

5086348AA - NVG273; Transfer Case: Input Gear for Mopar Image

Input Gear

Mopar

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 48RE TRANSMISSION. 5-SPD AUTOMATIC 545RFE TRANSMISSION. 6-Spd Automatic 68RFE Transmission.

7

5086312AA - NVG273; Transfer Case: Input Shaft Bearing for Mopar Image

Input Shaft Bearing

Mopar

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 48RE TRANSMISSION. 5-SPD AUTOMATIC 545RFE TRANSMISSION. 6-Spd Automatic 68RFE Transmission. 6-SPEED MANUAL G56 TRANSMISSION. All Manual Transmissions.

Description: [Inner]

8

4338908 - NVG273; Transfer Case: Planetary Carrier Thrust Washer for Mopar Image

Planetary Carrier Thrust Washer

Mopar

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 48RE TRANSMISSION. 5-SPD AUTOMATIC 545RFE TRANSMISSION. 6-Spd Automatic 68RFE Transmission. 6-SPEED MANUAL G56 TRANSMISSION. All Manual Transmissions.

Description: W/[52105024AC]

$15.70

$15.70

10

68196233AA - NVG273; Transfer Case: Transfer Case Planetary for Mopar Image

Transfer Case Planetary

Mopar

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 48RE TRANSMISSION. 5-SPD AUTOMATIC 545RFE TRANSMISSION. 6-Spd Automatic 68RFE Transmission. 6-SPEED MANUAL G56 TRANSMISSION. All Manual Transmissions.

11

5086316AA - NVG273; Transfer Case: Range Fork Sleeve for Mopar Image

Range Fork Sleeve

Mopar

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 48RE TRANSMISSION. 5-SPD AUTOMATIC 545RFE TRANSMISSION. 6-Spd Automatic 68RFE Transmission. 6-SPEED MANUAL G56 TRANSMISSION. All Manual Transmissions.

12

5080503AA - NVG273; Transfer Case: Clutch Gear Snap Ring for Mopar Image

Clutch Gear Snap Ring, Inner

Mopar

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 48RE TRANSMISSION. 5-SPD AUTOMATIC 545RFE TRANSMISSION. 6-Spd Automatic 68RFE Transmission. 6-SPEED MANUAL G56 TRANSMISSION. All Manual Transmissions.

Description: Clutch Gear.

$12.65

$12.65

13

4796909 - NVG273; Transfer Case: Mode Synchronizer Sleeve for Mopar Image

Mode Synchronizer Sleeve

Mopar

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 48RE TRANSMISSION. 5-SPD AUTOMATIC 545RFE TRANSMISSION. 6-Spd Automatic 68RFE Transmission. 6-SPEED MANUAL G56 TRANSMISSION. All Manual Transmissions.

Description: 52111013AD

$343.00

$343.00

14

5161431AC - NVG273; Transfer Case: Oneway Clutch for Mopar Image

Sprocket Carrier

Mopar

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 48RE TRANSMISSION. 5-SPD AUTOMATIC 545RFE TRANSMISSION. 6-Spd Automatic 68RFE Transmission. 6-SPEED MANUAL G56 TRANSMISSION. All Manual Transmissions.

16

5086326AA - NVG273; Transfer Case: Driven Sprocket for Mopar Image

Driven Sprocket

Mopar

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 48RE TRANSMISSION. 5-SPD AUTOMATIC 545RFE TRANSMISSION. 6-Spd Automatic 68RFE Transmission. 6-SPEED MANUAL G56 TRANSMISSION. All Manual Transmissions.

17

5086328AA - NVG273; Transfer Case: Transfer Case Chain for Mopar Image

Transfer Case Chain

Mopar

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 48RE TRANSMISSION. 5-SPD AUTOMATIC 545RFE TRANSMISSION. 6-Spd Automatic 68RFE Transmission. 6-SPEED MANUAL G56 TRANSMISSION. All Manual Transmissions.

$429.00

$429.00

18

5161429AA - NVG273; Transfer Case: Transfer Case Mainshaft for Mopar Image

Transfer Case Mainshaft

Mopar

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 48RE TRANSMISSION. 5-SPD AUTOMATIC 545RFE TRANSMISSION. 6-Spd Automatic 68RFE Transmission. 6-SPEED MANUAL G56 TRANSMISSION. All Manual Transmissions.

Description: With Transfer Case Stamp Number [52105649AF]

19

5086333AB - NVG273; Transfer Case: Output Shaft Bearing for Mopar Image

Output Shaft Bearing

Mopar

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 48RE TRANSMISSION. 5-SPD AUTOMATIC 545RFE TRANSMISSION. 6-Spd Automatic 68RFE Transmission. 6-SPEED MANUAL G56 TRANSMISSION. All Manual Transmissions.

Description: [Rear]

20

5086334AA - NVG273; Transfer Case: Snap Ring for Mopar Image

Snap Ring

Mopar

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 48RE TRANSMISSION. 5-SPD AUTOMATIC 545RFE TRANSMISSION. 6-Spd Automatic 68RFE Transmission. 6-SPEED MANUAL G56 TRANSMISSION. All Manual Transmissions.

21

5086338AA - NVG273; Transfer Case: Snap Ring for Mopar Image

Snap Ring

Mopar

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 48RE TRANSMISSION. 5-SPD AUTOMATIC 545RFE TRANSMISSION. 6-Spd Automatic 68RFE Transmission. 6-SPEED MANUAL G56 TRANSMISSION. All Manual Transmissions.

22

4269189 - NVG273; Transfer Case: Output Shaft Bearing for Mopar Image

Output Shaft Bearing

Mopar

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 48RE TRANSMISSION. 5-SPD AUTOMATIC 545RFE TRANSMISSION. 6-Spd Automatic 68RFE Transmission. 6-SPEED MANUAL G56 TRANSMISSION. All Manual Transmissions.

Description: W/[52105024AC]

$131.00

$131.00

23

5161432AA - NVG273; Transfer Case: Transfer Case Output Shaft for Mopar Image

Transfer Case Output Shaft

Mopar

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 48RE TRANSMISSION. 5-SPD AUTOMATIC 545RFE TRANSMISSION. 6-Spd Automatic 68RFE Transmission. 6-SPEED MANUAL G56 TRANSMISSION. All Manual Transmissions.

24

5086306AA - NVG273; Transfer Case: Snap Ring for Mopar Image

Snap Ring

Mopar

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 48RE TRANSMISSION. 5-SPD AUTOMATIC 545RFE TRANSMISSION. 6-Spd Automatic 68RFE Transmission. 6-SPEED MANUAL G56 TRANSMISSION. All Manual Transmissions.

25

5103489AA - NVG273; Transfer Case: Output Shaft Bearing for Mopar Image

Output Shaft Bearing

Mopar

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 48RE TRANSMISSION. 5-SPD AUTOMATIC 545RFE TRANSMISSION. 6-Spd Automatic 68RFE Transmission. 6-SPEED MANUAL G56 TRANSMISSION. All Manual Transmissions.

Description: [Front Output]

26

4219085 - NVG273; Transfer Case: Transmission Ring for Mopar Image

Transmission Ring

Mopar

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 48RE TRANSMISSION. 5-SPD AUTOMATIC 545RFE TRANSMISSION. 6-Spd Automatic 68RFE Transmission. 6-SPEED MANUAL G56 TRANSMISSION. All Manual Transmissions.

27

5086343AA - NVG273; Transfer Case: Output Shaft Seal for Mopar Image

Output Shaft Seal

Mopar

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 48RE TRANSMISSION. 5-SPD AUTOMATIC 545RFE TRANSMISSION. 6-Spd Automatic 68RFE Transmission. 6-SPEED MANUAL G56 TRANSMISSION. All Manual Transmissions.

Description: With 52853061AE

28

5086315AA - NVG273; Transfer Case: Input Seal for Mopar Image

Input Seal

Mopar

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 48RE TRANSMISSION. 5-SPD AUTOMATIC 545RFE TRANSMISSION. 6-Spd Automatic 68RFE Transmission. 6-SPEED MANUAL G56 TRANSMISSION. All Manual Transmissions.

29

5085912AB - NVG273; Transfer Case: Driveshaft Yoke Flange for Mopar Image

Driveshaft Yoke Flange

Mopar

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 48RE TRANSMISSION. 5-SPD AUTOMATIC 545RFE TRANSMISSION. 6-Spd Automatic 68RFE Transmission. 6-SPEED MANUAL G56 TRANSMISSION. All Manual Transmissions.

$296.00

$296.00

30

4167924 - NVG273; Transfer Case: Transfer Case Yoke Nut for Mopar Image

Transfer Case Yoke Nut

Mopar

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 48RE TRANSMISSION. 5-SPD AUTOMATIC 545RFE TRANSMISSION. 6-Spd Automatic 68RFE Transmission. 6-SPEED MANUAL G56 TRANSMISSION. All Manual Transmissions.

Description: W/[52105024AC]

31

5086339AA - NVG273; Transfer Case: Transfer Case Oil Pump for Mopar Image

Transfer Case Oil Pump

Mopar

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 48RE TRANSMISSION. 5-SPD AUTOMATIC 545RFE TRANSMISSION. 6-Spd Automatic 68RFE Transmission. 6-SPEED MANUAL G56 TRANSMISSION. All Manual Transmissions.

32

4210603 - NVG273; Transfer Case: Main Shaft Seal for Mopar Image

Main Shaft Seal

Mopar

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 48RE TRANSMISSION. 5-SPD AUTOMATIC 545RFE TRANSMISSION. 6-Spd Automatic 68RFE Transmission. 6-SPEED MANUAL G56 TRANSMISSION. All Manual Transmissions.

Description: W/[52105024AC]

33

5159201AA - NVG273; Transfer Case: Synchronizer Hub for Mopar Image

Sychronizer Mode Hub

Mopar

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 48RE TRANSMISSION. 5-SPD AUTOMATIC 545RFE TRANSMISSION. 6-Spd Automatic 68RFE Transmission. 6-SPEED MANUAL G56 TRANSMISSION. All Manual Transmissions.

$127.00

$127.00
