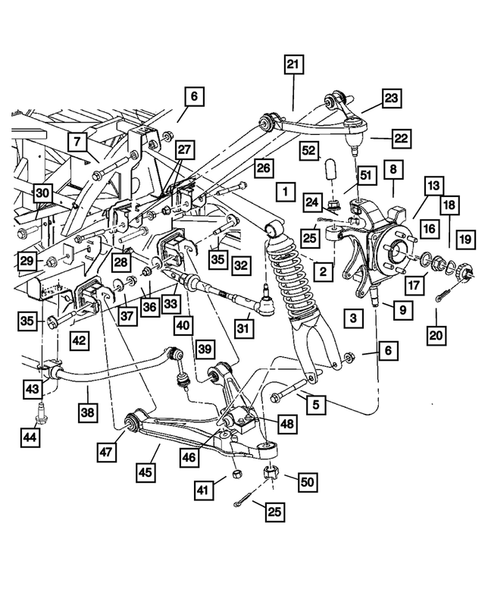

Rear Suspension for 2005 Dodge Viper

N/A

Ball Joint Fitting, Upper Or Lower

83507064AB

Mopar

Description: Zirc

View Details

N/A

Tow Link To Frame Shim

04643914

Mopar

View Details

N/A

Gasket

4848173

Mopar

Description: CORROSION PREVENTION BALL JOINT FLANGE

View Details

N/A

Bushing

5290233AA

Mopar

Description: Upper and Lower Shock

View Details

N/A

Tow Link To Frame Shim

4643985

Mopar

View Details

N/A

Hex Flange Lock Nut, Mounting

6101696

Mopar

Description: M10x1.50. Drive Shaft Center Bearing to Center Bearing Bracket

$6.75

N/A

Tow Link To Frame Shim

4643986

Mopar

View Details

N/A

Tow Link To Frame Shim

4643912

Mopar

View Details

N/A

Tow Link To Frame Shim

4643915

Mopar

View Details

N/A

Hex Head Locking Screw And Washer

6035642

Mopar

Description: .50-20x2.25 Grade 8. Knuckle To Hub Assembly

View Details

N/A

Tow Link To Frame Shim

04643987

Mopar

View Details

N/A

Ball Joint Seal, Lower Control Arm

52006404

Mopar

$43.80

N/A

Gasket, Hub And Bearing

4848171

Mopar

Description: Hub and Bearing.

View Details

1

Suspension Shock Absorber ²

5181434AC

Mopar

Description: Rear. With Bushings

View Details

1

Suspension Shock Absorber

5290040AE

Mopar

Description: Rear. With Bushings

View Details

2

Rear Coil Spring

5181440AB

Mopar

$441.00

3

Suspension Bracket

5290128AB

Mopar

View Details

5

Hex Flange Head Screw, Shock Absorber Lower Mounting

6102081AA

Mopar

Description: M14x2.00x140.00

View Details

6

Hex Flange Lock Nut, Mounting

6502698

Mopar

Description: M14x2.00. Differential Cover to Frame

$11.95

7

Screw, Shock Mounting Upper

6504189

Mopar

Description: M14x2.00x127.00.

View Details

8

Rear Knuckle, Right

5134994AA

Mopar

Description: Contains: Knuckle, Balljoint, Gasket, Seal

View Details

8

Rear Knuckle, Left

5134995AA

Mopar

Description: Contains; Knuckle, Ball Joint, Gasket, Seal

$948.00

View Details

$948.00

View Details

13

Brake Hub And Bearing

4848716

Mopar

View Details

16

Flat Washer

6502293

Mopar

Description: M23x43x4

View Details

17

Hex Flange Nut

6502294

Mopar

Description: M22x1.25

View Details

18

Wave Washer, Mounting

5212684

Mopar

Description: Drive Hub to Halfshaft

View Details

19

Nut And Washer Package, Mounting

4293167AB

Mopar

Description: Drive Hub Nut to Halfshaft

View Details

20

Cotter Pin

6500336

Mopar

Description: M5x36.00

$6.75

21

Control Arm, Upper

5290117AA

Mopar

View Details

21

Upper Control Arm

5290117AE

Mopar

Description: Rear

View Details

24

Hex Nut, Mounting

6035641

Mopar

Description: .625-18. Upper Ball Joint to knuckle

View Details

25

Cotter Pin, Upper Or Lower

120123

Mopar

Description: Ball Joint Mounting

$8.10

26

Suspension Upper Arm Bolt, Mounting

6502046

Mopar

View Details

27

Hex Nut And Coned Washer, Mounting Left Side

6502585

Mopar

Description: M12X1.75. Engine Mount To Cradle Bracket

View Details

28

Bolt

06101707

Mopar

Description: M10x1.50x75. Trans. Crossmember to Frame,

View Details

29

Hex Locking Nut And Washer

6502337

Mopar

Description: M10x1.50. Heat Shield To Transmission

$8.75

30

Screw And Washer, Mounting

6101063

Mopar

Description: M10x1.5x45. Bracket to Crossmember

View Details

31

Outer Tie Rod End

5290168AC

Mopar

$54.00

32

Trailing Rear Suspension Link

4763159AC

Mopar

$328.00

32

Trailing Rear Suspension Link

4763159AB

Mopar

View Details

33

Toe Link Rod

4709309

Mopar

View Details

35

Control Arm Cam Bolt, Mounting

6036525AA

Mopar

Description: LCA

$73.45

36

Hex Lock Nut

6036467AA

Mopar

Description: .50-20. Cam Bolt Lower Control Arm

$7.80

View Details

$7.80

View Details

37

Front Suspension Control Arm Cam, Lower

6036469AA

Mopar

Description: Adjusting

$12.05

38

Rear Suspension Stabilizer Bar

5181438AA

Mopar

View Details

38

Rear Sway Bar

5290169AA

Mopar

View Details

39

Rear Suspension Assist Link

68231479AA

Mopar

View Details

40

Hex Jam Nut

6100219

Mopar

Description: M10x1.5. Link to Bar

View Details

41

Hex Nut, Mounting

6502556

Mopar

Description: M10-1.5. Transfer Case Shift Knob

$11.30

42

Stabilizer Bar Grommet Retainer

4404219AB

Mopar

Description: Attaching

View Details

43

Stabilizer Bar Bushing

4643004

Mopar

$62.60

View Details

$62.60

View Details

45

Control Arm, Right

5290118AA

Mopar

View Details

45

Control Arm, Left

5290119AA

Mopar

View Details

45

Control Arm, Right

5290118AB

Mopar

$1,130.00

View Details

$1,130.00

View Details

45

Control Arm, Left

5290119AB

Mopar

$1,325.00

View Details

$1,325.00

View Details

46

Bushing

4848052AB

Mopar

Description: With Strap

View Details

47

Control Arm Bushing, Lower

4848050

Mopar

View Details

48

Hex Flange Head Bolt

6503357

Mopar

Description: M10x1.50x55

View Details

50

Hex Nut, Mounting

6035670

Mopar

Description: Lower Ball Joint to Knuckle

View Details

51

Hex Lock Nut And Washer, Mounting

6506557AA

Mopar

Description: M14x1.50. Upper Control Arm Ball Joint To Steering Knuckle

$9.00

52

Ball Joint Cap

5290275AA

Mopar

View Details
